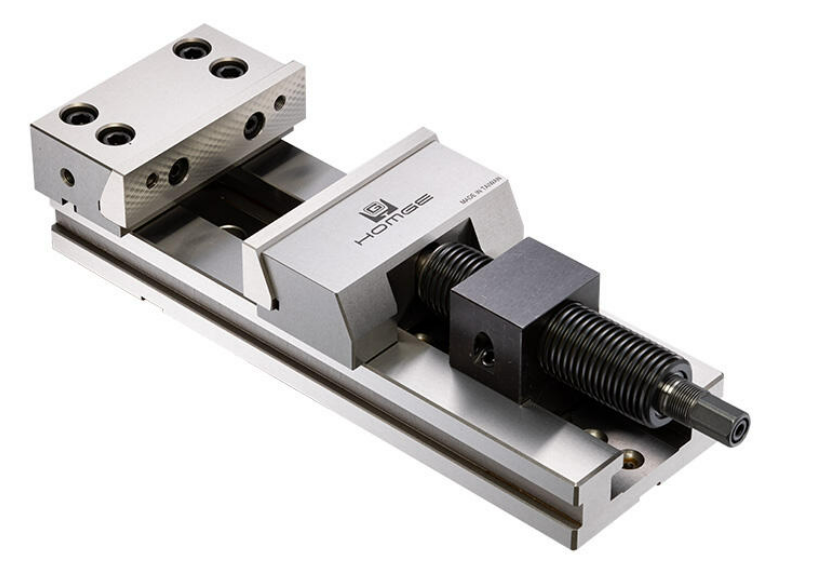

Precision Rapid Vise (HG-h, Hydraulic Type)
Model: HG-150h(A,B,C,D), 175h(B,C,D), 200h(A,B,C)
Features:
Maximize productivity with our Precision Rapid Hydraulic Vise. Combining a quick-slide design for fast positioning with powerful hydraulic clamping, it ensures rigid stability for demanding CNC milling operations.
- Designed with HYDRAULIC LEAD SCREW for easy operation.
- This modular clamping vise possesses all features of HG- Type.
1.Made entirely of steel, the Vise is strong and durable and retains accuracy.
2.Designed with an instant clamping Hydraulic Hex-Nut for quick adjustment when clamping different work-pieces with irregular lengths.
3.Compact design allows maximum workholding capacity on machine. Movable Jaw is short in length for maximum opening capacity.

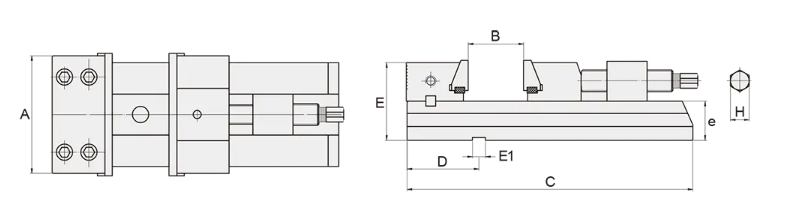

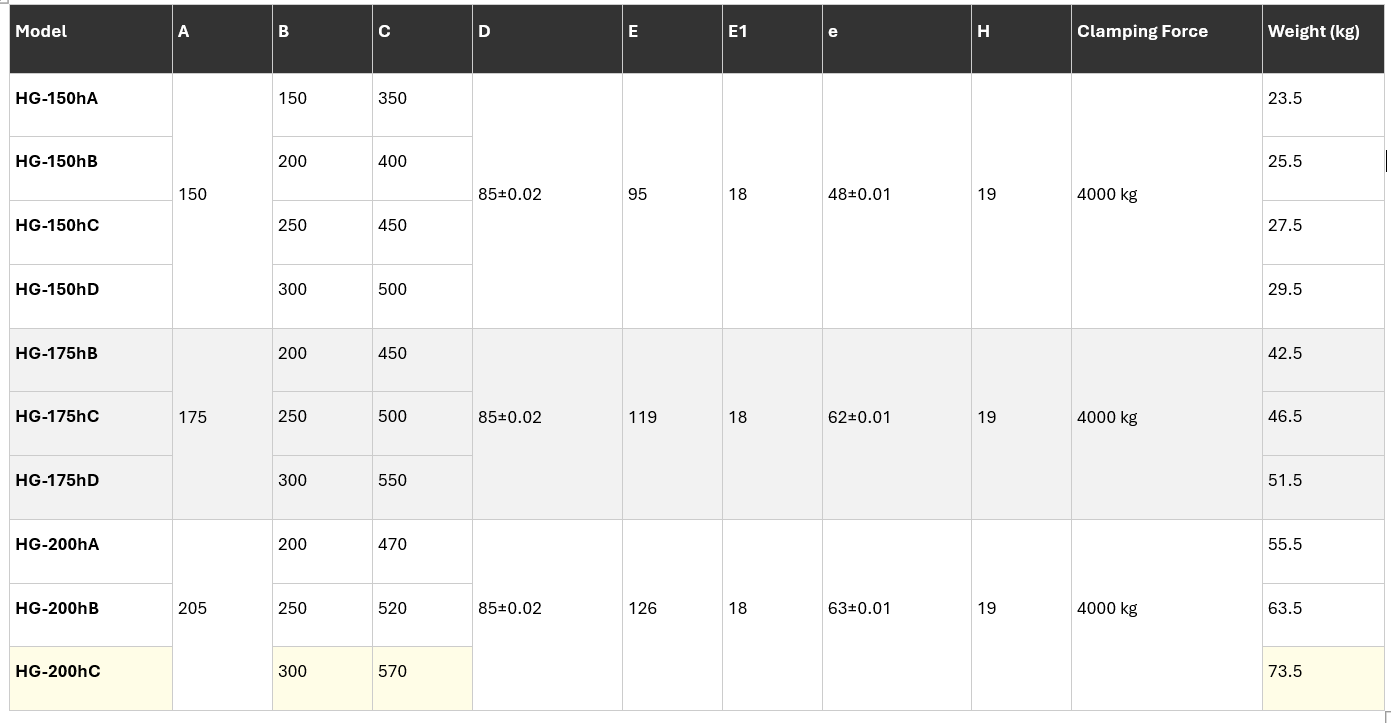

SPECIFICATIONS (Material: Body S50C Steel, Slideways HRC 52-56) Unit: mm
STANDARD ACCESSORIES:
• 2 pcs of Alignment Wedge
• 4 pcs of Clamp
• 1 pc of Handle
